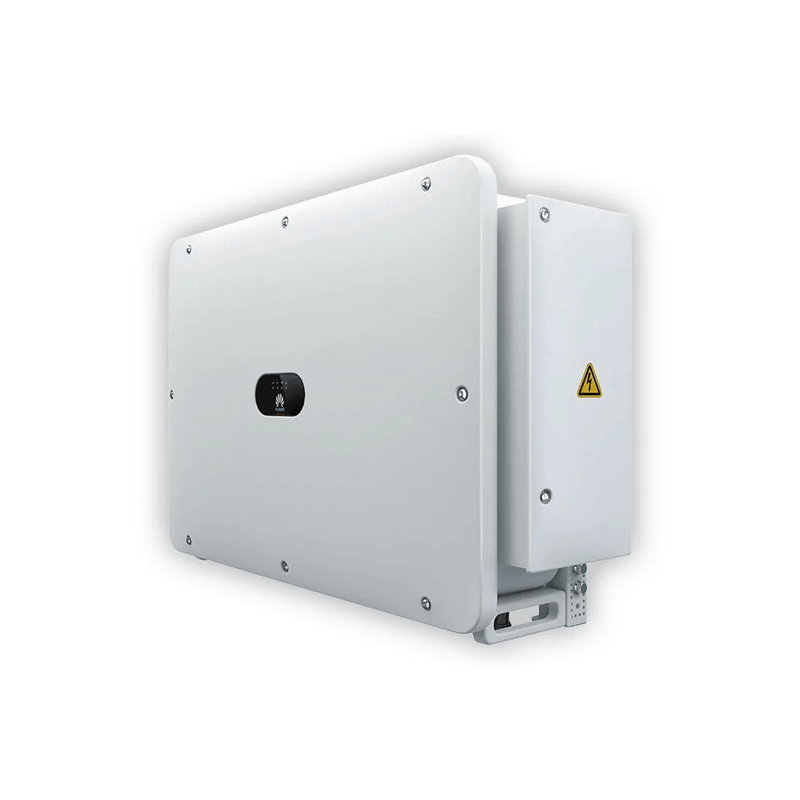

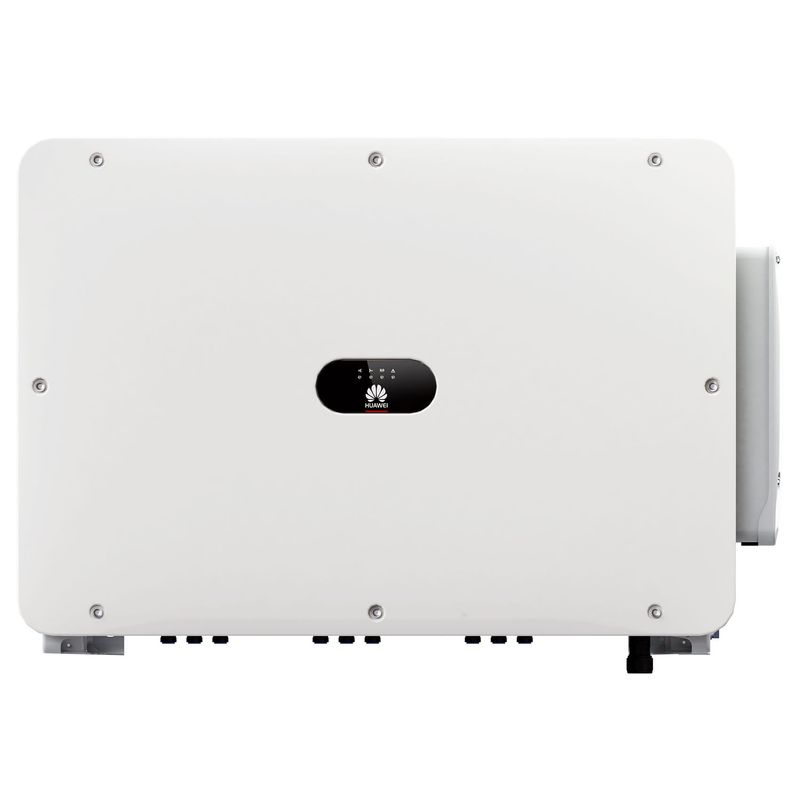

Inversor/Gerador Solar On-Grid 215KW Trif. 800v SUN2000-215KTL-H3 - Huawei Dados técnicos Eficiência Eficiência máxima 99,0% Eficiência europeia ? 98,8% Input Max. Input Voltage 1,500 V Number of MPP Trackers 3 Max. Current per MPPT 100A/100A/100A Max. PV Inputs per MPPT 4/5/5 Start Voltage 550 V MPPT Operating Voltage Range 500 V ~ 1,500 V Nominal Input Voltage 1,080 V Nominal AC Active Power 200,000 W Max. AC Apparent Power 215,000 VA Max. AC Active Power (cos?=1) 215,000 W Nominal Output Voltage 800 V, 3W + PE Rated AC Grid Frequency 50 Hz / 60 Hz Nominal Output Current 144.4 A Max. Output Current 155.2 A Adjustable Power Factor Range 0.8 LG ... 0.8 LD Max. Total Harmonic Distortion ? 3% Protection Input-side Disconnection Device Yes Anti-islanding Protection Yes AC Overcurrent Protection Yes DC Reverse-polarity Protection Yes PV-array String Fault Monitoring Yes DC Surge Arrester Type II AC Surge Arrester Type II DC Insulation Resistance Detection Yes Residual Current Monitoring Unit Yes Communication Display LED Indicators, WLAN + APP USB Yes MBUS Yes RS485 Yes General Dimensions (W x H x D) 1,035 x 700 x 365 mm (40.7 x 27.6 x 14.4 inch) Weight (with mounting plate) ?86 kg (191.8 lb.) Operating Temperature Range -25°C ~ 60°C (-13°F ~ 140°F) Cooling Method Smart Air Cooling Max. Operating Altitude without Derating 4,000 m (13,123 ft.) Relative Humidity 0 ~ 100% DC Connector Staubli MC4 EVO2 AC Connector Waterproof Connector + OT/DT Terminal Protection Degree IP66 Topology Transformerless *MONITORAMENTO NAO INCLUSO* * Imagem meramente ilustrativas
